Flash partitions
Flash memory partitions
To integrate wolfBoot you need to partition the flash into separate areas (partitions), taking into account the geometry of the flash memory.
Images boundaries must be aligned to physical sectors, because the bootloader erases all the flash sectors before storing a new firmware image, and swaps the content of the two partitions, one sector at a time.
For this reason, before proceeding with partitioning on a target system, the following aspects must be considered:
- BOOT partition and UPDATE partition must have the same size, and be able to contain the running system
- SWAP partition must be as big as the largest sector in both BOOT and UPDATE partition.
The flash memory of the target is partitioned into the following areas:
- Bootloader partition, at the beginning of the flash, generally very small (16-32KB)
- Primary slot (BOOT partition) starting at address
WOLFBOOT_PARTITION_BOOT_ADDRESS - Secondary slot (UPDATE partition) starting at address
WOLFBOOT_PARTITION_UPDATE_ADDRESS- both partitions share the same size, defined as
WOLFBOOT_PARTITION_SIZE
- both partitions share the same size, defined as
- Swapping space (SWAP partition) starting at address
WOLFBOOT_PARTITION_SWAP_ADDRESS- the swap space size is defined as
WOLFBOOT_SECTOR_SIZEand must be as big as the largest sector used in either BOOT/UPDATE partitions.
- the swap space size is defined as
A proper partitioning configuration must be set up for the specific use, by setting the values for offsets and sizes in include/target.h.
Bootloader partition
This partition is usually very small, and only contains the bootloader code and data. Public keys pre-authorized during factory image creations are automatically stored as part of the firmware image.
BOOT partition
This is the only partition from where it is possible to chain-load and execute a firmware image. The firmware image must be linked so that its entry-point is at address WOLFBOOT_PARTITION_BOOT_ADDRESS + 256.
UPDATE partition
The running firmware is responsible for transferring a new firmware image through a secure channel, and store it in the secondary slot. If an update is initiated, the bootloader will replace or swap the firmware in the boot partition at the next reboot.
Partition status and sector flags
Partitions are used to store firmware images currently in use (BOOT) or ready to swap in (UPDATE). In order to track the status of the firmware in each partition, a 1-Byte state field is stored at the end of each partition space. This byte is initialized when the partition is erased and accessed for the first time.
Possible states are:
- STATE_NEW (0xFF): The image was never staged for boot, or triggered for an update. If an image is present, no flags are active.
- STATE_UPDATING (0x70): Only valid in the UPDATE partition. The image is marked for update and should replace the current image in BOOT.
- STATE_TESTING (0x10): Only valid in the BOOT partition. The image has been just updated, and never completed its boot. If present after reboot, it means that the updated image failed to boot, despite being correctly verified. This particular situation triggers a rollback.
- STATE_SUCCESS (0x00): Only valid in the BOOT partition. The image stored in BOOT has been successfully staged at least once, and the update is now complete.
Starting from the State byte and growing backwards, the bootloader keeps track of the state of each sector, using 4 bits per sector at the end of the UPDATE partition. Whenever an update is initiated, the firmware is transferred from UPDATE to BOOT one sector at a time, and storing a backup of the original firmware from BOOT to UPDATE. Each flash access operation correspond to a different value of the flags for the sector in the sector flags area, so that if the operation is interrupted, it can be resumed upon reboot.

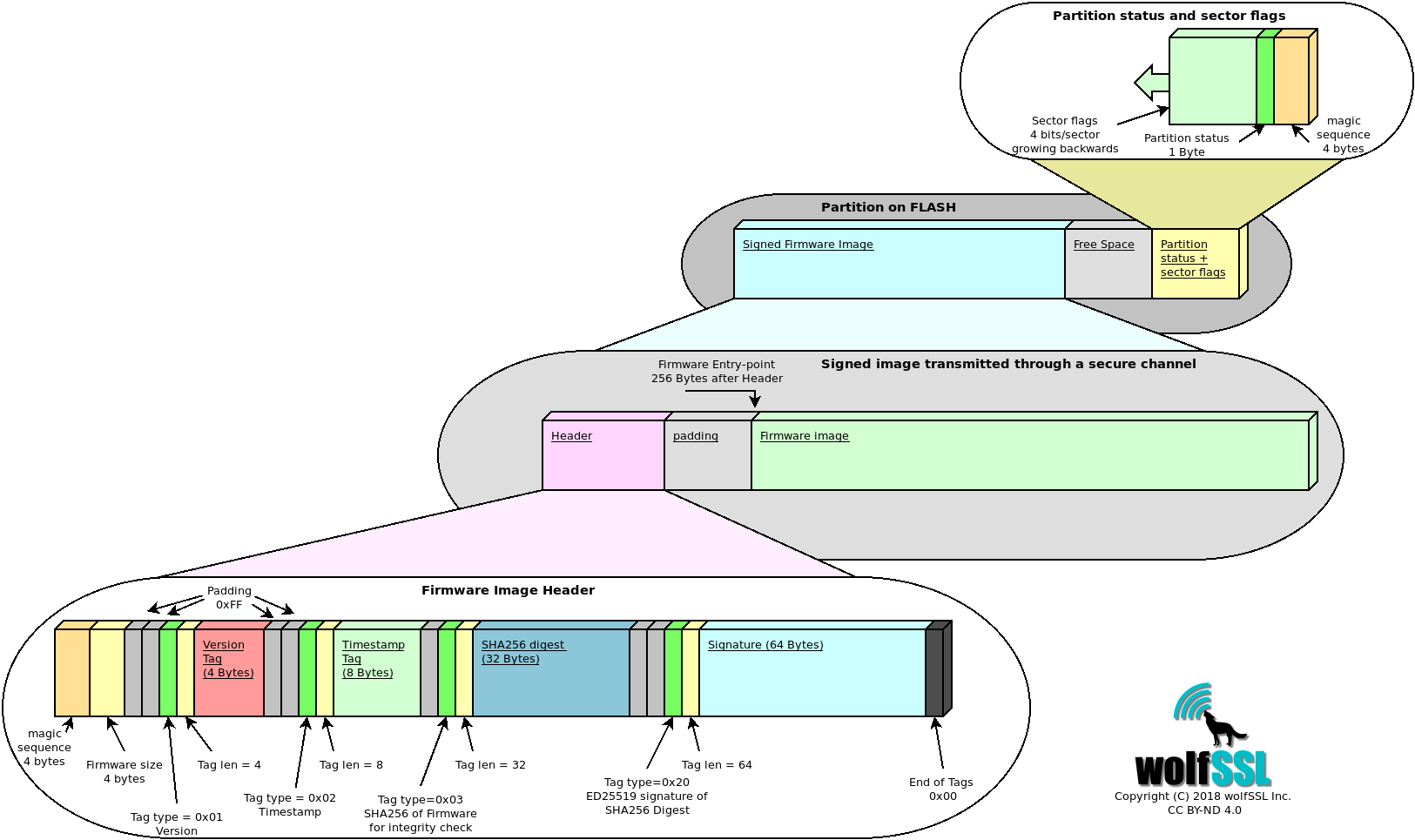

Overview of the content of the FLASH partitions
